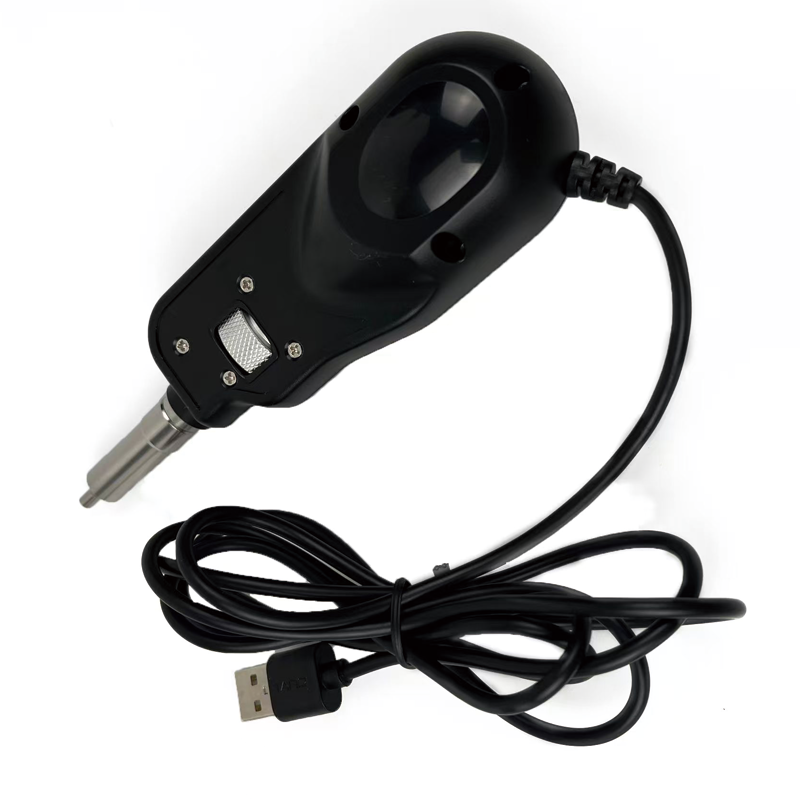

FTS91

Fibre Scope

FTS91 Fibre Scope is new released product from OPWILL. It has 400x magnification, definitely can provide high definition and clear image for the fibre ends. FTS91 also can be worked with OTDR tester.

lConsisent alignment, simple to operate;
lManual operation focus control, easy to access;
l400x, high definition, clear image;
lAdjusted source light side, easy for detection.

Angled and lengthened tips for corner test

Connect with OTDR testers

APPLICATION

Connect with OPWILL OTDR FTS510 series;

FTS91 Fibre Scope Specifications

FTS91 Fibre Scope SPECIFICATIONS
Magnification	400X
Definition	1.0um
Focus Way	Singe-way
Output	USB 1.0
Weight	160g
Dimensions	1354050mm
OTDR Support	OPWILL FTS510 Series OTDR

FTS91 Fibre Scope Ordering Information

FTS91 Fibre Scope STANDARD CONFIGURAIOTN
25-U-M	FC/SC/ST/E2000 UPC connector
125-U-M	LC/MU UPC connector
FC-U-F	FC UPC bulkhead
SC-U-F	SC UPC bulkhead
LC-U-F	LC UPC bulkhead
FTS91 Fibre Scope OPTIONAL CONFIGURATION
25-A-M	FC/SC/ST/E2000 APC connector
125-A-M	LC/MU APC connector
SC/FC-A-F	SC/FC APC bulkhead
20-U-M	SMPTE/LEMO UPC connector
20-U-F	SMPTE/LEMO UPC bulkhead

Notes: Product ordering information may update along with the product upgrade, please refer to the final version provided by our sales.

Related products

FTS91 Fibre Scope

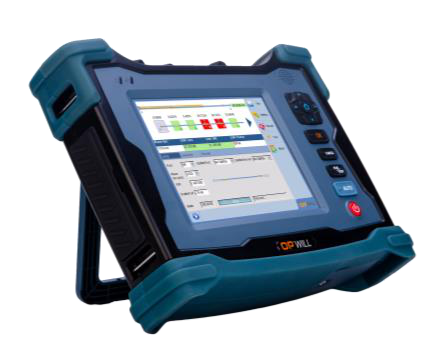

FTS510 -- Series Handheld OTDR Tester
