FTS-900 Optical cable routing intelligent locator

key word：

Category：

Fiber Optics

Consultation：

400-630-3382

Product inquiry

FEATURES

The optical fiber is used as the vibration sensor to collect the vibration at the far end, and also as the carrier of signal transmission. The reflected signal generated by the vibration is transmitted to the system host. After analysis, the equipment host gives the signal analysis results through algorithm calculation, and the results are sent back to the far end through the Internet. The remote troubleshooting personnel simply knock and see the results synchronously, Instantly judge the optical cable route.

Optical cable routing intelligent locator series products can search and locate buried optical cables and pipeline optical cables, generate specific location data of optical cable joint box, fiber breaking point and light attenuation point, and provide pipeline construction protection support services.

Mainly Function

It is applicable to the demands of optical cable routing data in various links such as design, completion acceptance, troubleshooting and resource verification of optical fiber communication project.

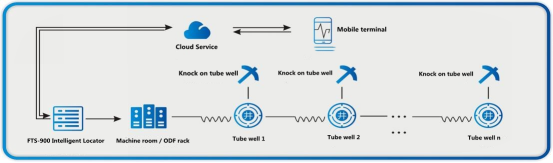

FTS-900 connects the optical cable from the ODF frame of the machine room, collects the micro vibration signal and GPS position information in real time, uploads them to the cloud, and finally transmits them to the handheld terminal of the on-site staff. The staff can confirm whether the optical cable passes through the tube well by knocking the well cover. It can be applied to daily optical cable resource design, completion acceptance and routing precision standard. There is no need to form a team, open a well or lift the cable. One person, one hammer and one terminal lock the optical cable routing information for one minute.

FTS-900 overcomes the weakness of traditional OTDR (use OTDR to find the distance of breakpoint, but do not know the exact location and direction of fault point). In addition to seeing the distance of fault point, it can also locate the striking distance when knocking the well cover, so as to determine the direction of optical cable, accurately, quickly and accurately locate the fault point, and quickly complete the emergency repair of optical cable.

FTS-900 can realize real-time online monitoring of a wide range of optical cables through superposition of optical switches, timely find fault points, actively control, avoid operation risks, change passive notification into active monitoring, and realize the whole process operation, maintenance and management of optical cable dumb resources.

Deploy FTS-900 optical cable routing fault intelligent locator and connect with the existing resource management system to realize data collection, management and utilization of optical cable dumb resources.

Test application

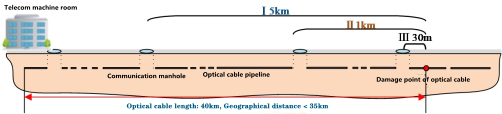

When the optical cable fails, OTDR cannot effectively locate the geographical distance, and FTS-900 is used for testing:

FTS-900 General Specifications

GENERAL SPECIFICATIONS
Client Interface
Screen	13.3inchs Color Screen
Service interface
USB data port	USB3.0 interface, 2; USB 2.0 interface, 1
Ethernet interface	10 / 100 / 1000M Base-T, RJ45 interface, 1
Operating system	Windows 10
CPU	Intel Core i3
Memory capacity	8G
Storage capacity	128G
Operation language	Chinese;English
Input mode	Full size keyboard, touch pad, external mouse
Wireless mode	Bluetooth optional, WiFi optional
Other interfaces
Other functions
Size and weight	FTS-900：350x 280x 99 mm; 7.5kg
Temperature	Operating temperature: 0℃ to 40℃ ; Storage temperature: - 10℃ to 60℃
Relative humidity	0% to 95% (non condensing)
Power supply mode	power supply DC24V

FTS-900 Technical Specifications

TECHNICAL SPECIFICATIONS
Model	FTS-900
Work wavelength	1550 ±25nm
Detection distance	0-40km
Positioning accuracy	±2m
Number of optical channels	1 (scalable)
sensitivity	<0.1nε@5-100Hz
Working mode	continuity
Interface type	E2000/APC
Laser safety	IEC 60825-1：2007：CLASS 1 21 CFR 1040.10

FTS-900 Ordering Information

FTS-900 STANDARD CONFIGURAIOTN
Mode	Description
FTS-900	Intelligent locator for optical cable routing fault
Standard accessories
Accessories	Power cord
	Instrument box
	Optical fiber jumper
	User 's manual
	Certificate / warranty card
	HD display terminal
	Optical fiber cleaner

Notes: Product ordering information may update along with the product upgrade, please refer to the final version provided by our sales.
