DTH Tester / DVB-S/S2 HD Satellite Finder

OP6966 is a DVB-S/S2 and MPEG-2/4 H.265(8 Bit) compliant handheld satellite meter. With its compact size, light weight, intuitive user’s interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital Satellite TV service to residential homes or multi-dwelling units.

key word:

Category:

Fiber Optics

Consultation:

describe

OP6966 is a DVB-S/S2 and MPEG-2/4 H.265(8 Bit) compliant handheld satellite meter. With its compact size, light weight, intuitive user’s interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital Satellite TV service to residential homes or multi-dwelling units.

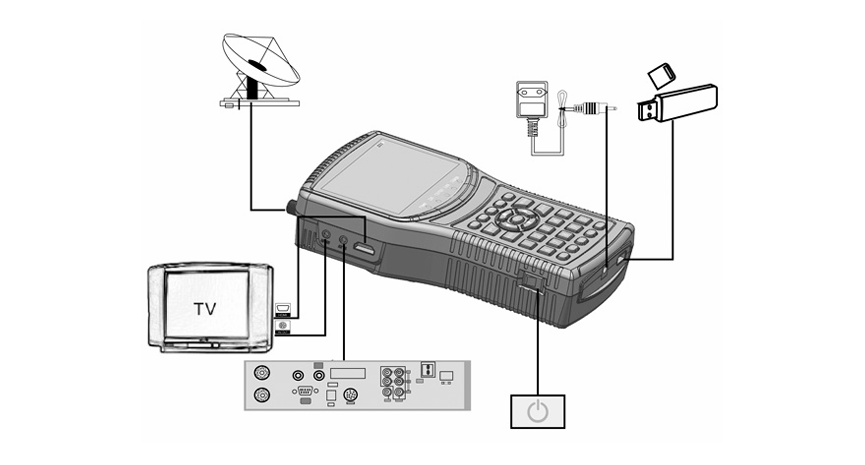

INSTALLATION OF METER

• 4.3 Inch High Definition TFT LCD Screen

• Fully DVB-S/DVB-S2, MPEG-2/MPEG4 compliant

• MPEG-2 / H.265(8 Bit) Hardware decoding

• Digital meter for signal strength and quality

• Supports scan of Auto,Blind,Manual or NIT

• Sound and Light Alarm for Locking Signal

• Auto Calculate Angle of AZ ,EL

• Supports DISEQC 1.0/1.1/1.2, 0/22khz Tone

• Support spectrum

• Speaker Integrated

• Support both AV out and AV in

• Supoort HD out

• LNB short protect

• 7.4V/3000mAh Li-Ion Battery Included

• Software upgrade via USB port • Easy to carry

TECHNICAL SPECIFICATION
